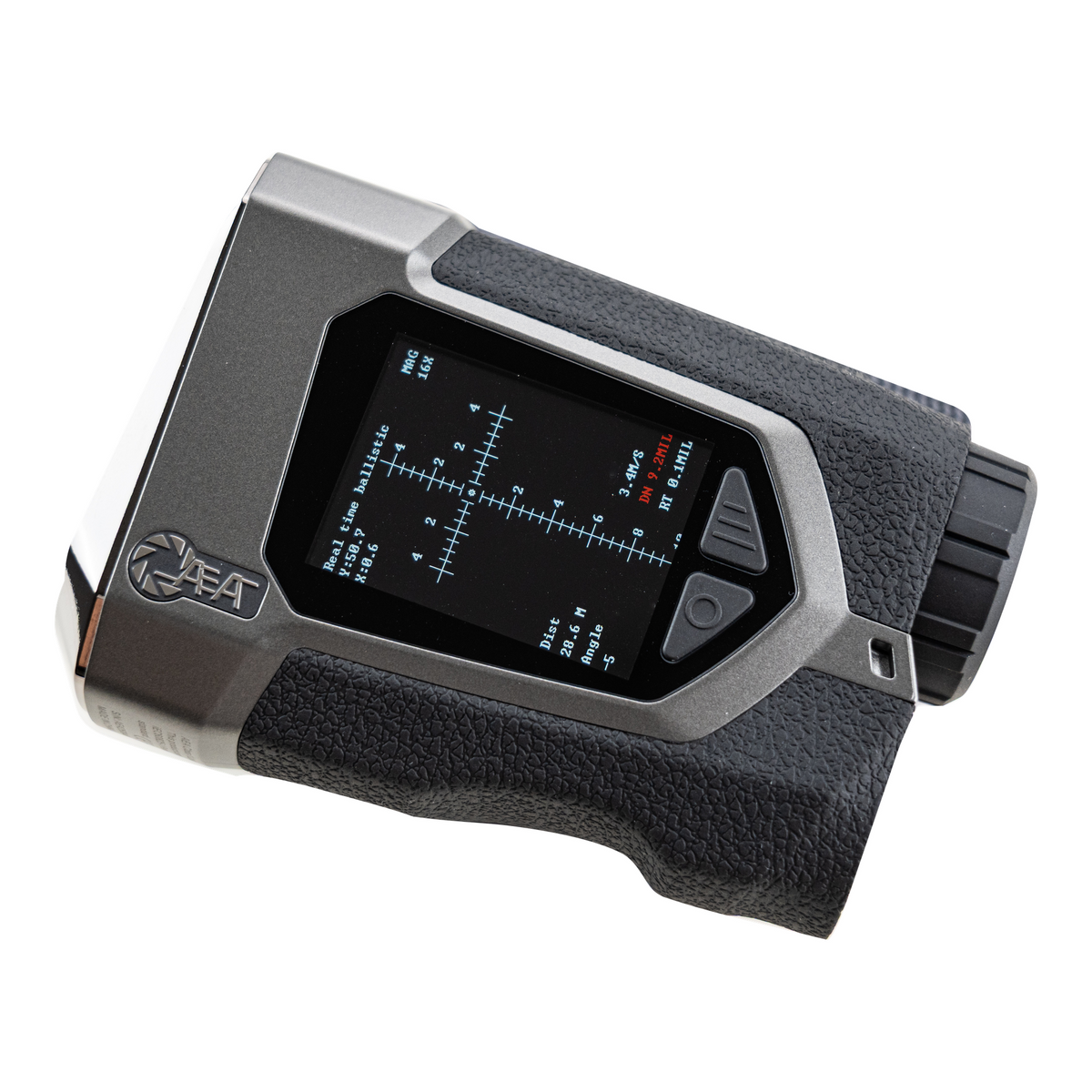

· AEA HD7W-BC1500 RANGEFINDER SIDE LCD AND TEXTURED GRIP, ORIGINAL PHOTOGRAPH CUT OUT ON WHITE
02 / 11
· AEA HD7W-BC1500 FEATURE OVERVIEW SUPPLIED BY AEA OPTIC
03 / 11

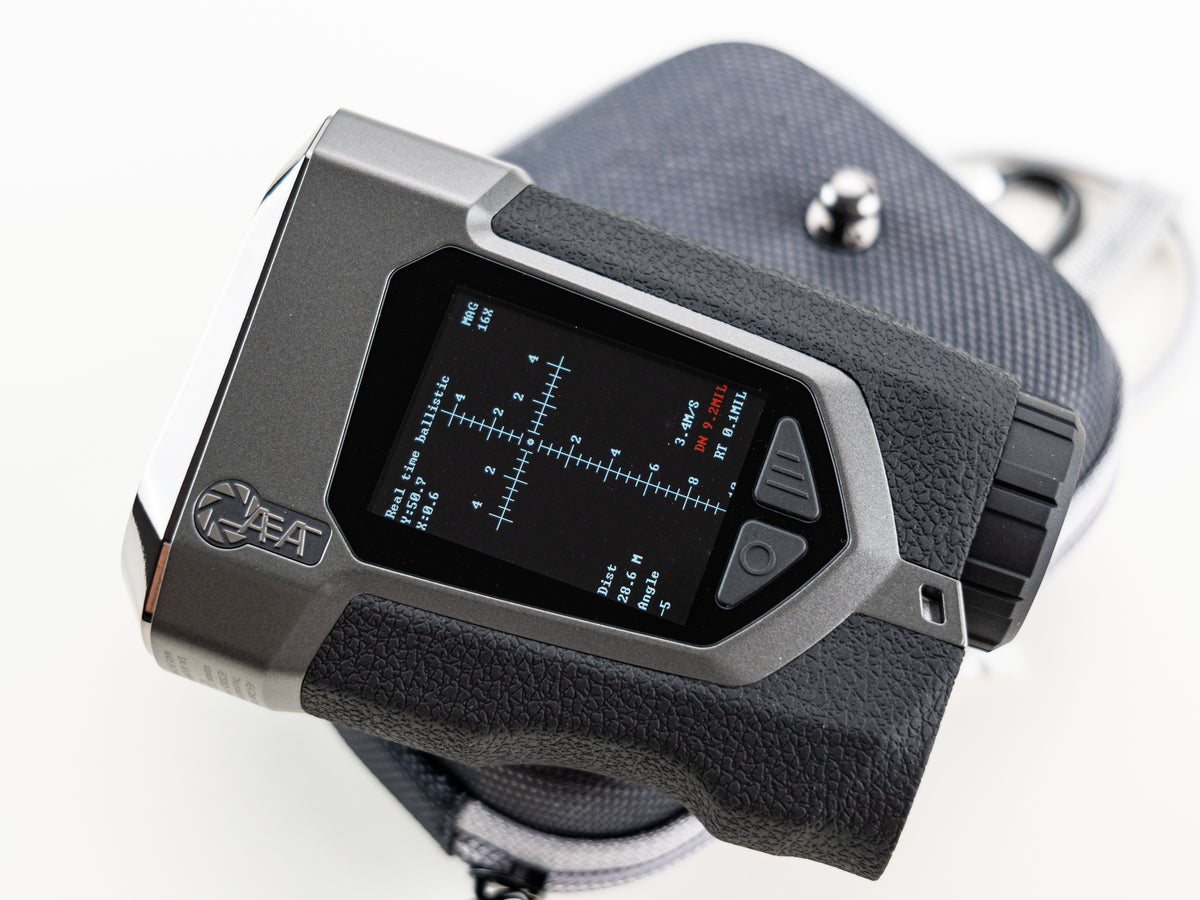

· AEA HD7W-BC1500 SIDE LCD SHOWING A SAMPLE INTERFACE, PHOTOGRAPHED ON A CARRYING CASE
04 / 11

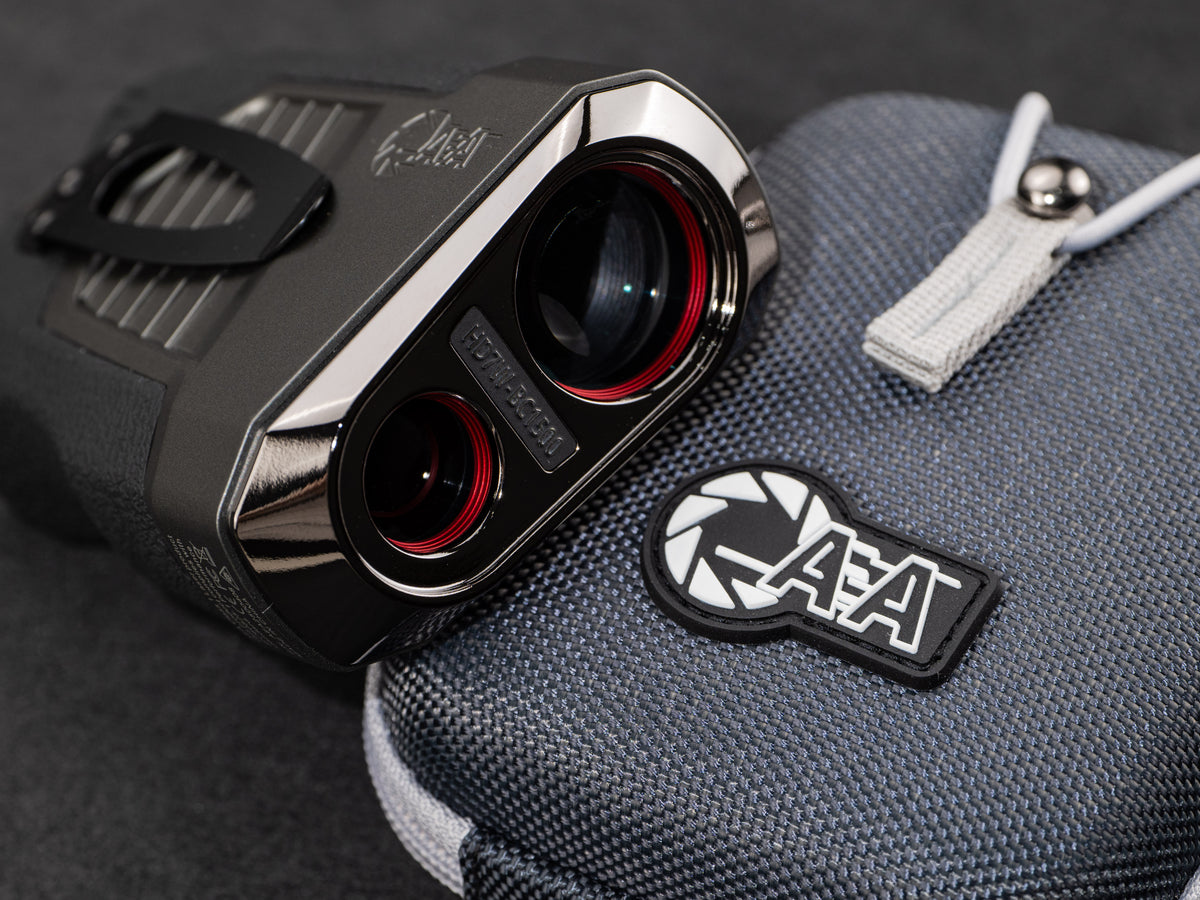

· AEA HD7W-BC1500 FRONT LENSES AND MODEL BADGE BESIDE AN AEA CARRYING CASE
05 / 11

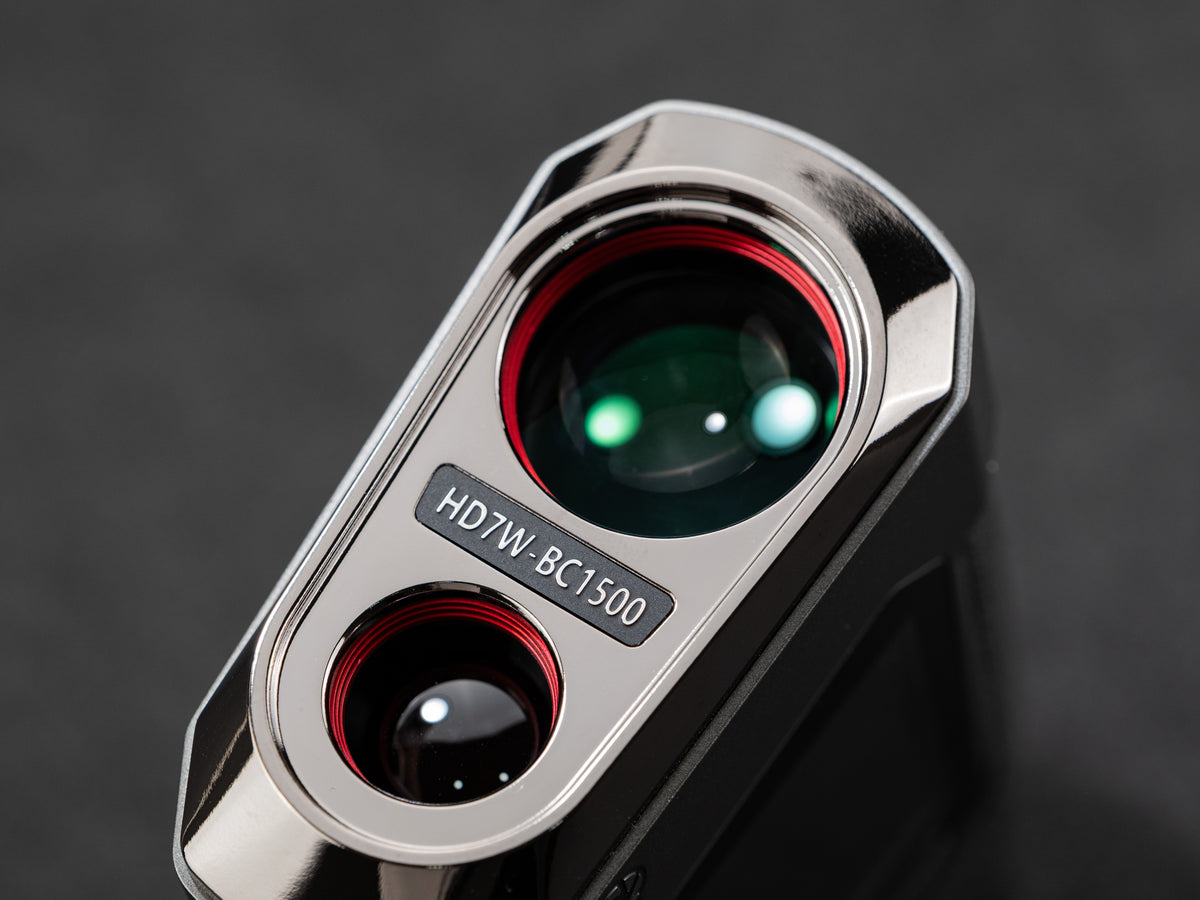

· AEA HD7W-BC1500 FRONT LENS DETAIL WITH RED RINGS AND ENGRAVED MODEL BADGE
06 / 11

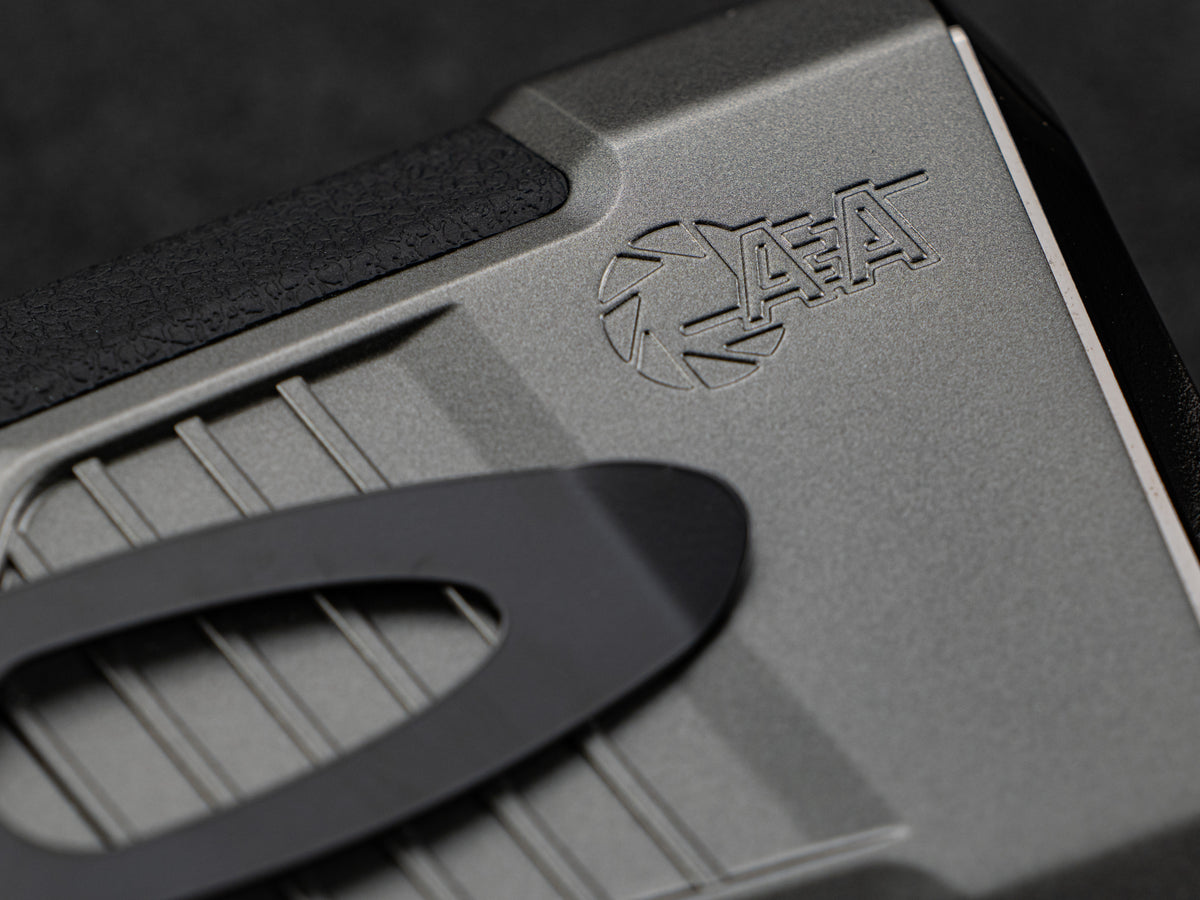

· AEA HD7W-BC1500 HOUSING DETAIL WITH AEA LOGO, CLIP AND TEXTURED GRIP
07 / 11

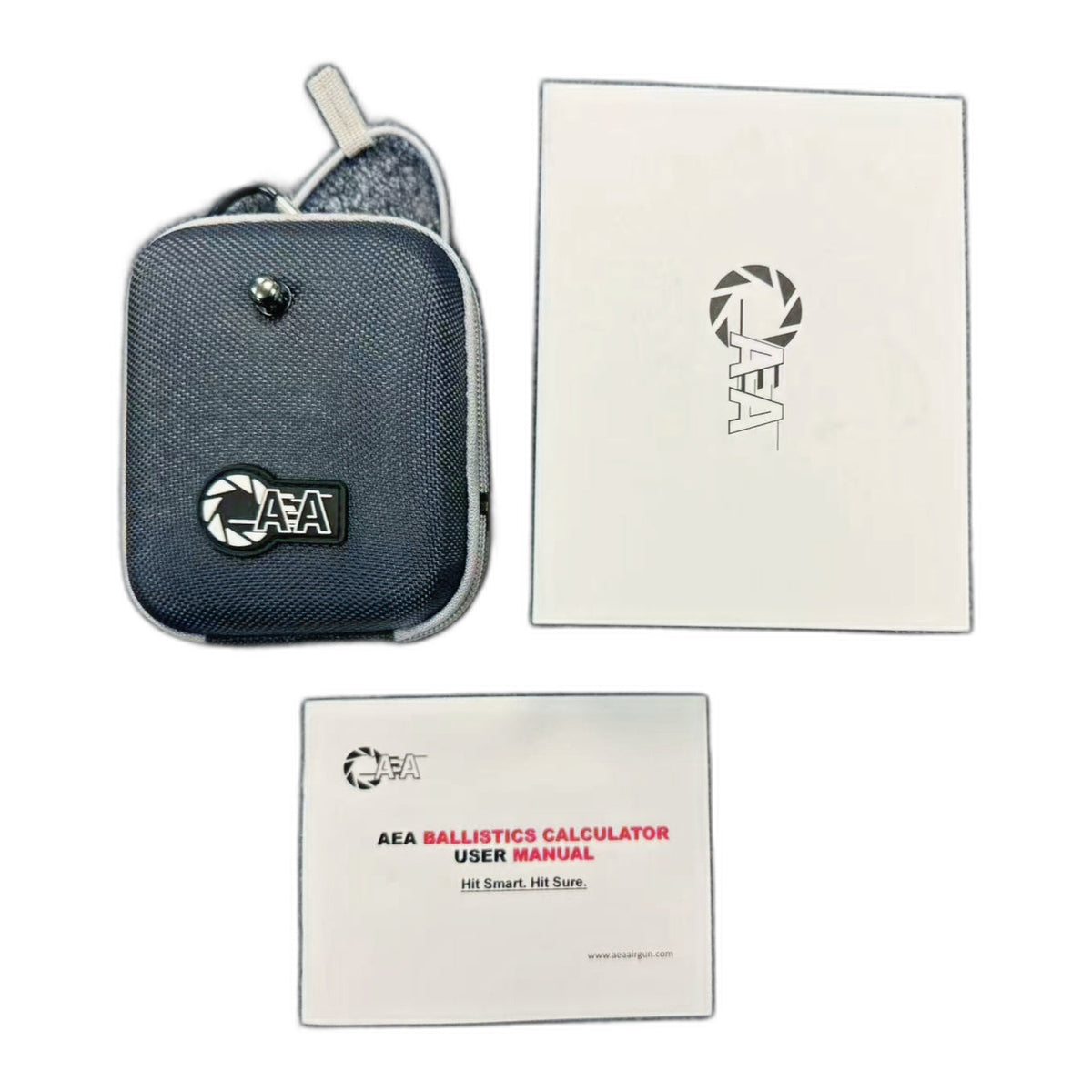

· AEA HD7W-BC1500 RANGEFINDER PACKAGE CONTENTS ON WHITE BACKGROUND
08 / 11

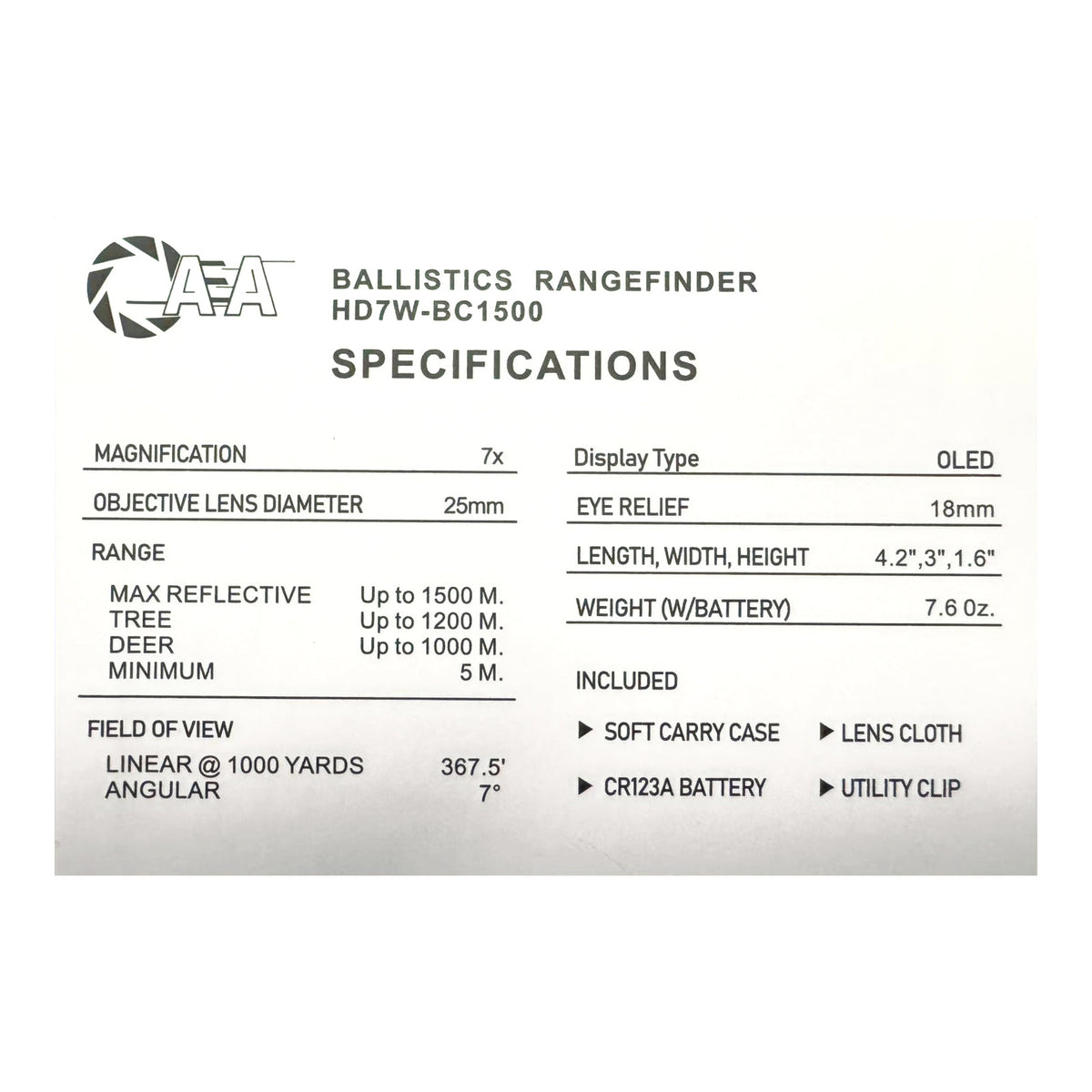

· AEA HD7W-BC1500 RANGEFINDER SPECIFICATIONS
09 / 11

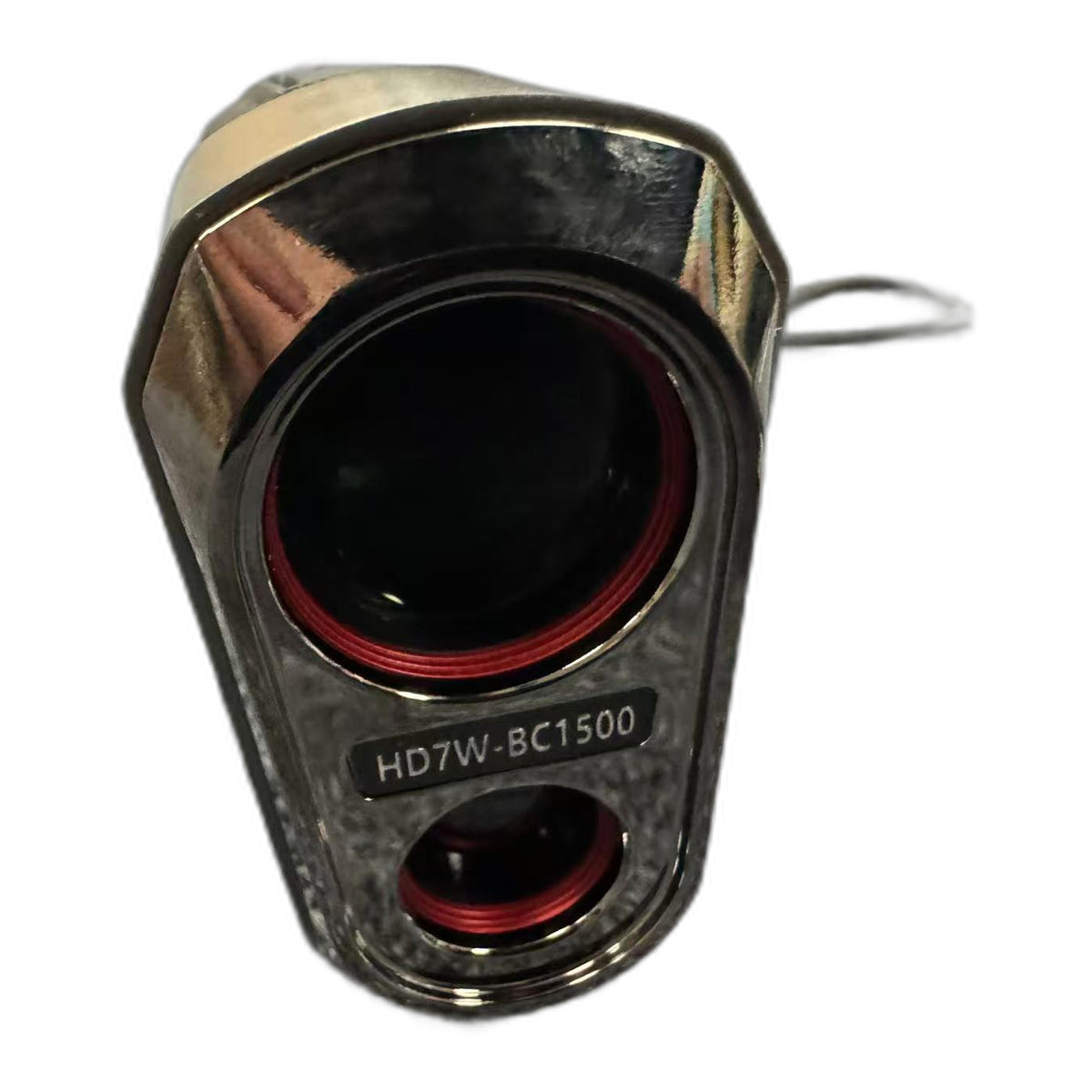

· AEA HD7W-BC1500 RANGEFINDER FRONT LENS ON WHITE BACKGROUND
10 / 11

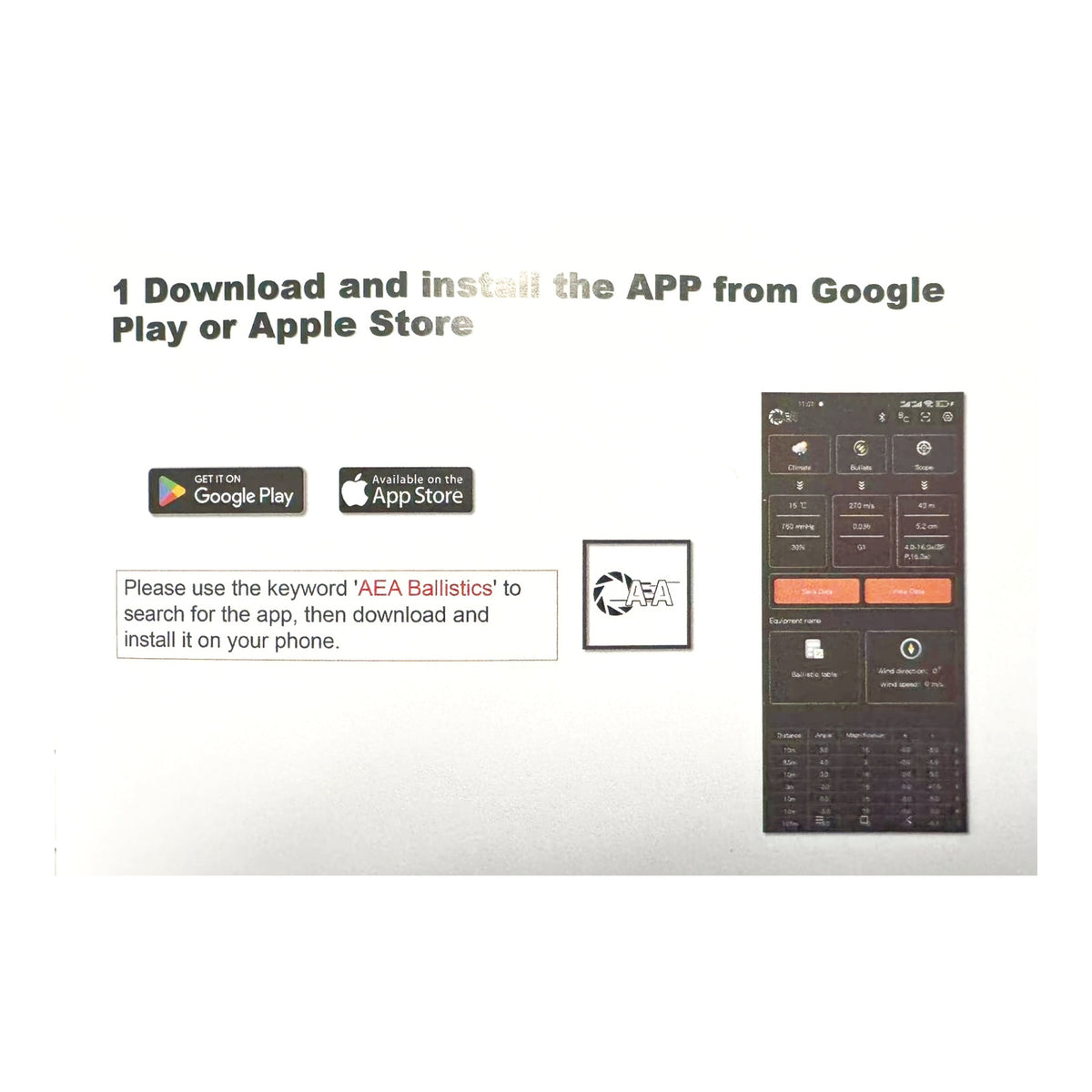

· AEA BALLISTICS MOBILE APP SETUP INSTRUCTIONS
11 / 11

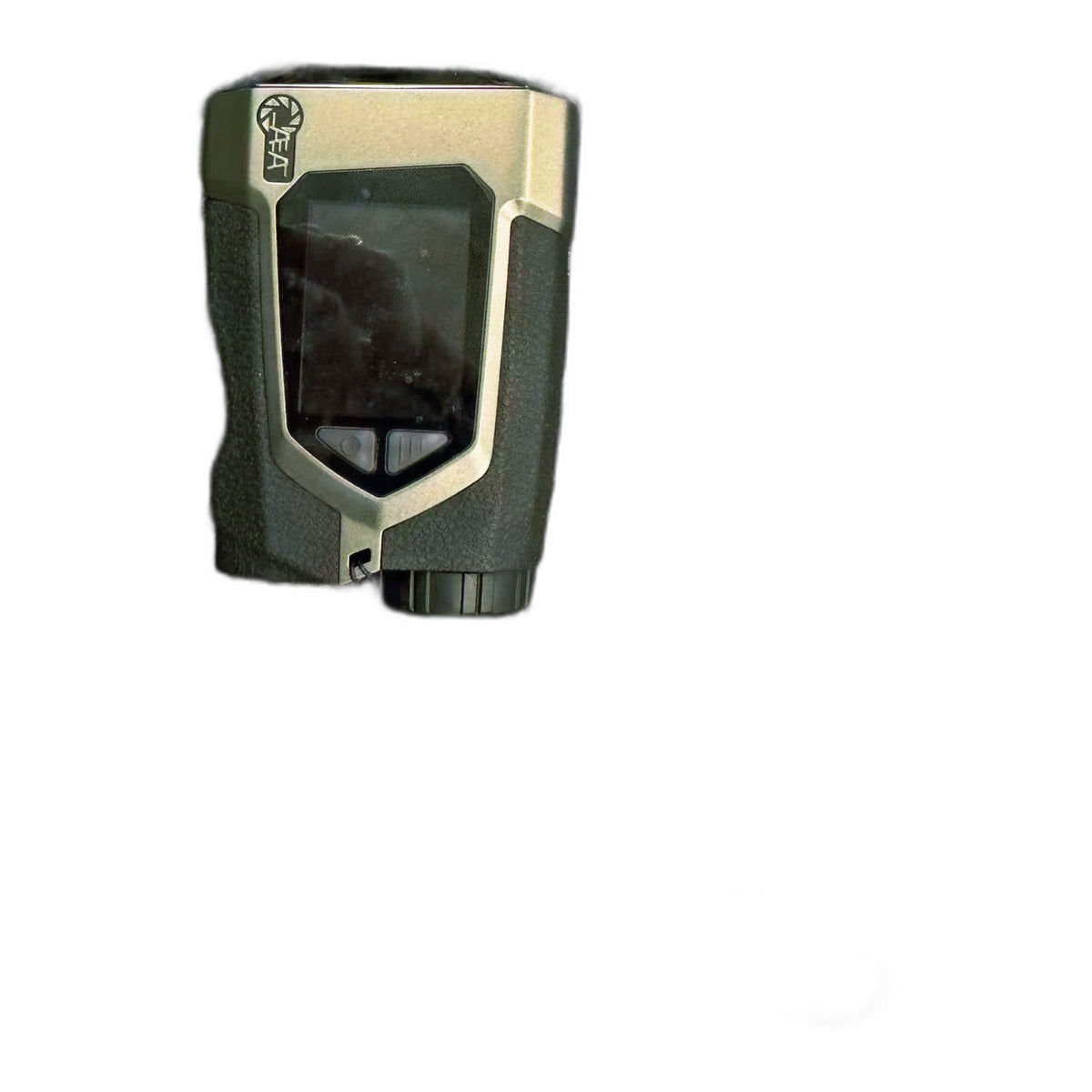

· AEA HD7W-BC1500 RANGEFINDER BODY ON WHITE BACKGROUNDAEA HD7W-BC1500 1500m Ballistic Rangefinder with Side LCD
Full details
AEA HD7W-BC1500 Ballistic Rangefinder
The AEA HD7W-BC1500 combines distance measurement, intelligent ballistic calculation and a large side-mounted LCD in one handheld device. Its 7×25 mm optics and wide field of view make observation straightforward, while the side screen lets you review information without looking through the eyepiece.
Key Features
- Distance measurement up to 1500 m: the supplied specifications list this maximum for reflective targets. Actual range depends on the target and conditions.
- Intelligent ballistic calculation: built-in functionality with a dedicated information interface.
- Two viewing options: an OLED in-view display plus a large side-mounted LCD for at-a-glance information.
- 7×25 mm optics: a 7° field of view and 18 mm eye relief, as listed on the supplied specification sheet.
- Visible product details: textured grip panels, side controls and an AEA-branded housing, shown in the original photographs.
- AEA optical ecosystem: the supplied AEA Optic overview describes ecosystem interoperability. Confirm compatibility with your specific device and software before purchase.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | HD7W-BC1500 |
| Magnification / objective lens | 7× / 25 mm |
| Maximum range — reflective targets | Up to 1500 m |
| Tree / deer target range | Up to 1200 m / up to 1000 m |
| Minimum range | 5 m |
| Field of view | 7°; 367.5 ft at 1000 yards |
| Eye relief | 18 mm |
| Displays | OLED in-view display and large side-mounted LCD |
| Dimensions (L × W × H) | 4.2 × 3 × 1.6 in |
| Weight with battery | 7.6 oz (approximately 215 g) |
| Battery | 1 × CR123A |
| Companion app | AEA Ballistics |
Specifications above follow the supplied product specification image. Range figures are target-dependent maximums, not guarantees under all conditions. The values visible on the photographed screen are examples, not performance specifications or optical magnification ratings.
Package Contents
The supplied specification sheet lists the rangefinder, soft carry case, lens cloth, CR123A battery and utility clip.
App & Compatibility
The supplied setup guide identifies the companion app as AEA Ballistics. Check current app availability and compatibility with your phone, region and device firmware before purchase.
